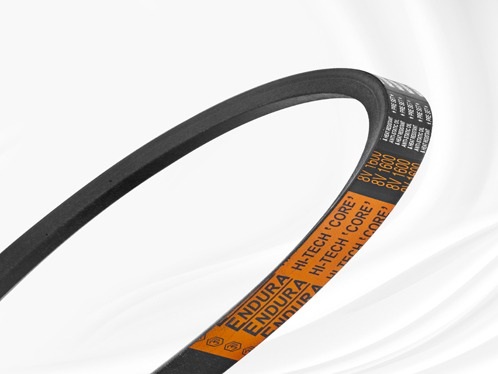

Narrow V Belts
Endura Hi-Tech 'CORE' Narrow section belts are designed to enhance power transmission efficiency by giving even stress over tension member with a special sectional shape of narrower top width and taller height, special raw material and production technique.
- • Made from high performance polymers for smooth transfer of power.
- • Special top ridge to provide extra strength under heavy load conditions.
- • Manufacture in accordance with RMA IP 22 standards.
- • Chloroprene rubberised wrapping fabric.
- • Can transmit up to three times the power than classical sections in the same drive space.
- • Greater design flexibility provides longer belt life.
| Construction | Functions | Materials |
|---|---|---|
| Cover fabric | Protects the inner parts of belts and strong abrasion resistance on the pulley groove | Cotton Polyester Fabric impregnated by chloroprene compound |
| Cover fabric | Protects the inner parts of belts and strong abrasion resistance on the pulley groove | Cotton Polyester Fabric impregnated by chloroprene compound |
| Top cushion rubber | Maintain belt flexibility | NR, SBR, CR |
| Tension member | Primary material for transferring power | Polyester cord, Aramid cord |
| Adhesive rubber | Supports and protects tension member adhesion | NR, Synthetic, CR |
| Bottom compression rubber | Maintain belt shape | NR, Synthetic, CR |
Market's Applications: Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. Narrow belts are recommended for machine exported to/from countries such as the USA and Canada where these belts profiles are standardized and used.
Length Designation: La (outside length in inches) Belt Number /10 = outside length in inches
Dimensions, Range and standards: Available in 3V, 5V and 8V sections. For range and standards, please refer to table no -
